Geothermal Retrofits
Upgrade Your Existing Home
Replace your aging furnace, boiler, or AC with a geothermal heat pump system. Enjoy dramatically lower energy bills, eliminate fossil fuel dependency, and increase your home's value — all while using your existing ductwork.
What Can Geothermal Replace?
A geothermal retrofit can replace virtually any existing heating or cooling system — including furnaces, boilers, and central AC — and do it better, quieter, and more efficiently.
Gas or Oil Furnace
Eliminate fossil fuel heating entirely. A geothermal heat pump replaces your furnace and provides air conditioning too — all from one system.
Electric Resistance Heat
Dramatically cut electricity consumption. Geothermal is 3–5x more efficient than electric baseboard or resistance heating systems.
Central Air Conditioner
Replace your aging AC with geothermal cooling that's 40–60% more efficient, with no noisy outdoor condenser unit.
Aging Boiler System
Upgrade from an old boiler to a geothermal water-to-water heat pump for radiant floors, baseboard radiators, and domestic hot water.
The Geothermal Retrofit Process
Retrofitting an existing home with geothermal is straightforward for an experienced contractor. The process typically takes 3–5 days for the ground loop and 1–2 days for indoor equipment — most families only experience one day without heating or cooling during the switchover.
Step 1: Home Energy Audit & System Design
Your contractor performs a comprehensive energy assessment — calculating heating and cooling loads, inspecting ductwork, evaluating lot conditions, and recommending the optimal system size and loop configuration. This ensures your new geothermal system is perfectly matched to your home.
Step 2: Ground Loop Installation

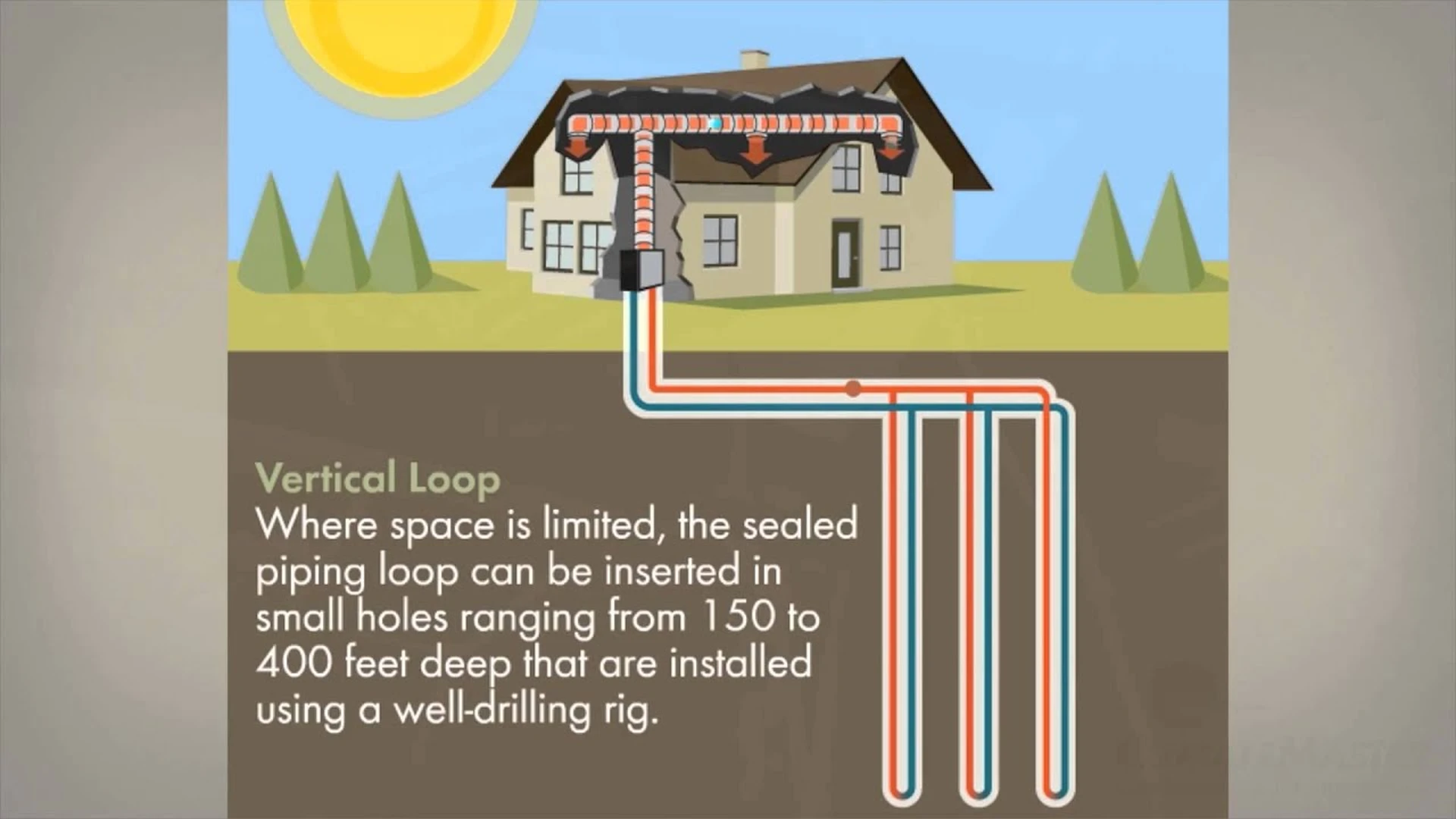

The drilling or trenching crew installs the underground loop system. Vertical loops (most common for retrofits) require minimal yard disruption — just a small drilling rig. The crew drills 1–3 boreholes, 150–300 feet deep, which are then sealed and connected. Your lawn recovers within weeks.
Step 3: Indoor Equipment Installation
The old furnace, boiler, or AC equipment is removed and replaced with a compact geothermal heat pump unit. The new unit connects to your existing ductwork (or a new hydronic distribution system). A desuperheater is typically added to provide free hot water preheating.
Step 4: Commissioning & Handoff
The system is tested, balanced, and commissioned. Your contractor walks you through the controls, connects any smart thermostat or monitoring system, and ensures everything is operating at peak efficiency. You'll feel the difference immediately.
Key Retrofit Considerations
Existing Ductwork Compatibility
Most geothermal heat pumps connect to your existing ductwork. If your ducts are in good condition, this significantly reduces installation complexity and cost. Ductless mini-split geothermal options are available for homes without ducts.
Lot Size & Ground Loop Options
Vertical ground loops require as little as a 10x10 foot area per borehole, making them viable even for smaller urban lots. Horizontal loops need more land but cost less. Your contractor will assess the best option.
Electrical Panel Capacity
Geothermal heat pumps are electrically powered. Homes replacing gas or oil systems may need an electrical panel upgrade to accommodate the new system — typically from 100-amp to 200-amp service.
Permits & Utility Coordination
Your contractor handles all required building permits, well drilling permits, and utility coordination. Many utilities offer special geothermal rate programs that further reduce operating costs.
Geothermal Retrofit Cost & ROI
Retrofit costs vary based on home size, existing infrastructure, and loop type. The federal tax credit and state incentives significantly reduce net costs, and the energy savings begin immediately.
- Typical retrofit cost: $20,000–$45,000 (before incentives)
- 30% federal tax credit reduces cost by $6,000–$13,500
- State rebates and utility incentives often add $1,000–$5,000+
- Eliminates annual gas/oil fuel purchases ($1,500–$4,000+/year)
- Typical payback period: 5–10 years
- Adds $10,000–$25,000 to home resale value
Retrofit Savings by System Replaced
Gas Furnace + AC → Geothermal
Oil Boiler → Geothermal
Electric Heat → Geothermal
Ready to Upgrade to Geothermal?
Find experienced geothermal retrofit contractors in your area. Get a free assessment of your existing system and a detailed proposal for your geothermal upgrade.
